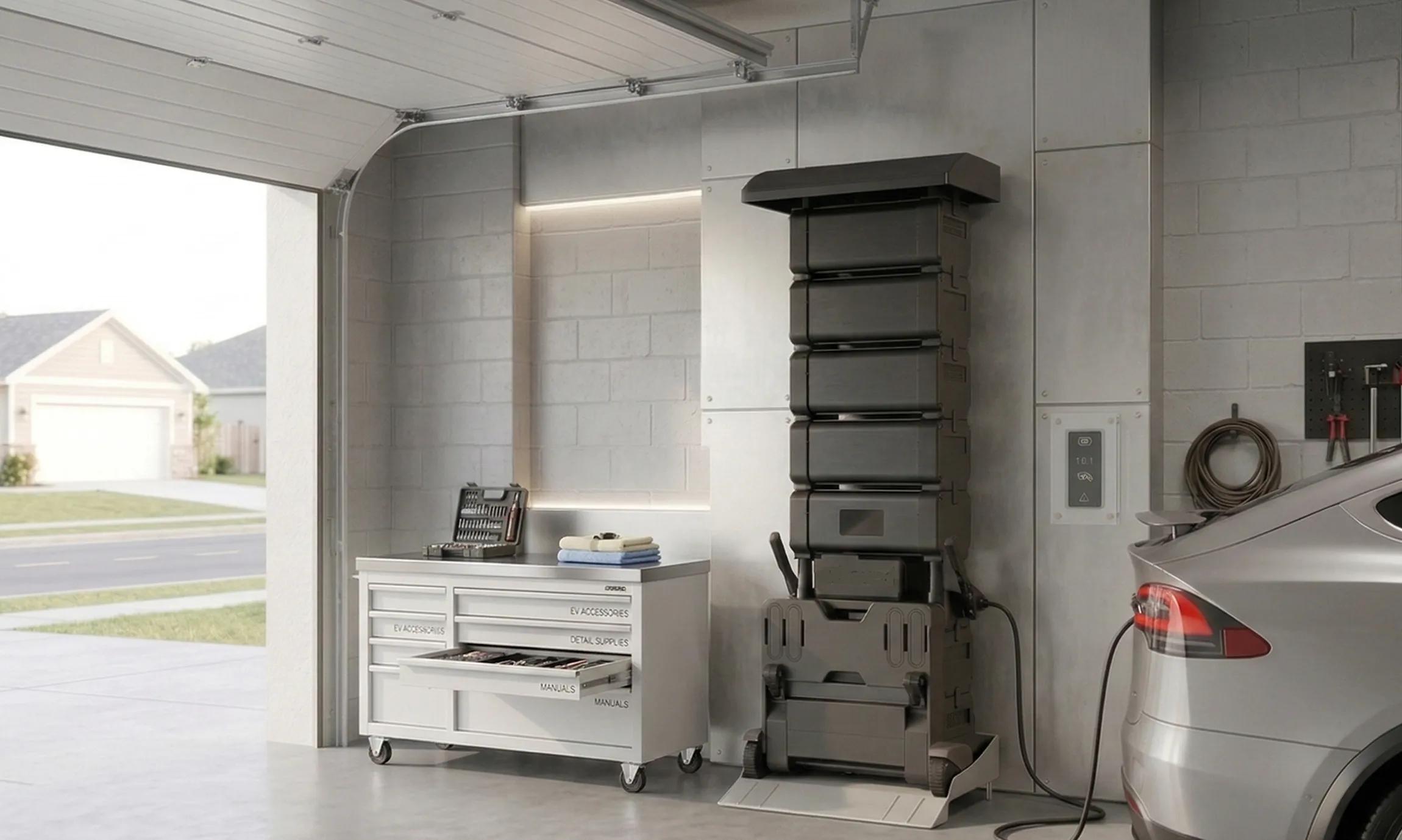

Whole-Home Backup at Home, Portable Power on the Go
120V & 240V Dual voltage output
Industrial-grade protection for your home and family.
.webp)
Versatility Without Compromise
During a blackout, the system switches to backup mode instantly with seamless transition, keeping your home powered without noticing a flicker. Your essential loads remain fully operational until grid power returns.
The system automatically stores energy when electricity is cheap and uses or sells it when prices rise. This helps lower your utility bill while reducing peak-demand charges.

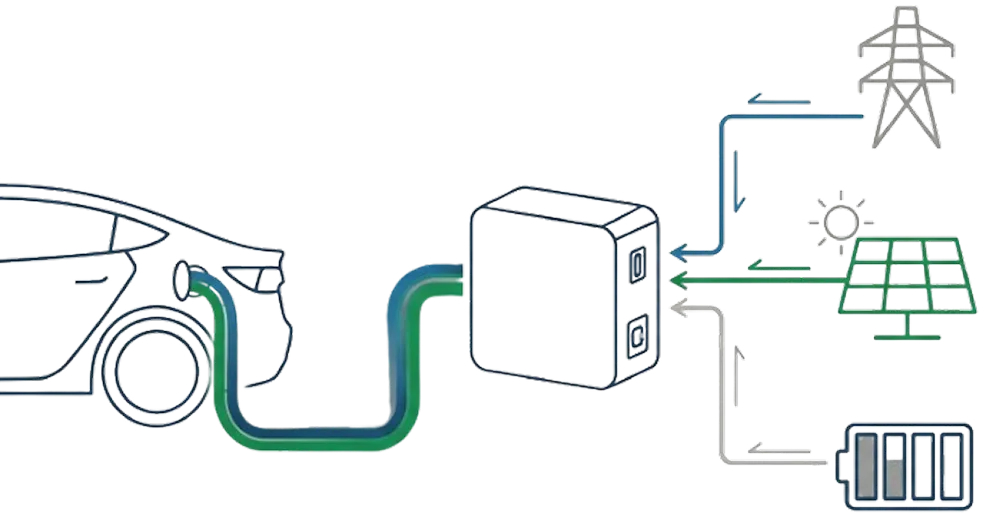

Charge your EV faster by combining solar power with stored battery energy. The system boosts your Level-2 charger into “Turbo Mode,” providing Level-2.5 performance without needing a higher-capacity grid connection.

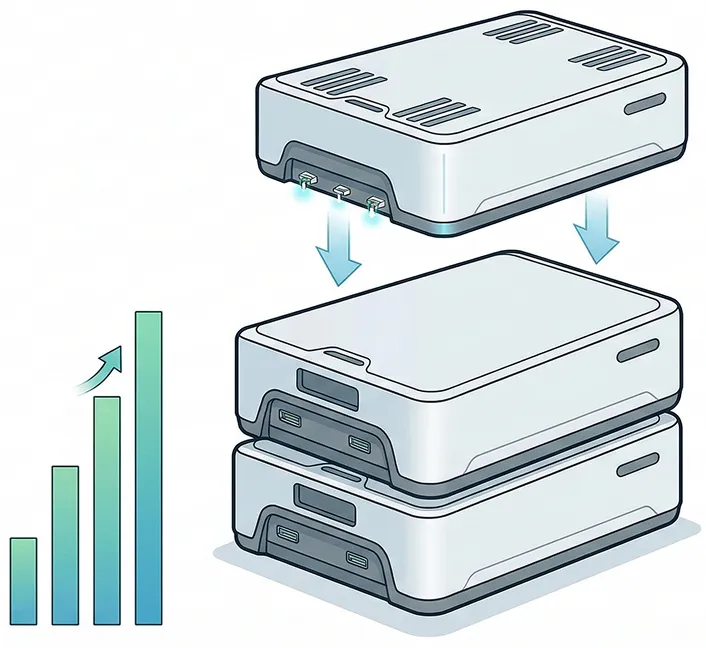

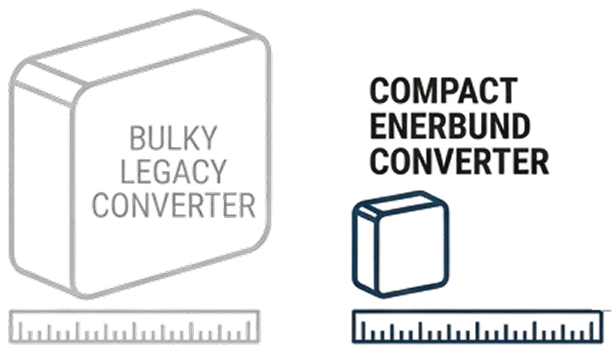

The modular converter and batteries can be removed effortlessly and used anywhere you need power. Take only the number of modules required for your specific trip or remote application.
Key features
%201.webp)
%201.webp)
Technical Specifications
Inverter
Continuous Output Power
10kW – Bidirectional
Turbo power mode Power
15kW – for 30 sec
Output voltage
240V split phase (±120V)
Charge current
42 Arms, 65Asurge
Efficiency %10-%100 load
95-97%
Hybrid Operation mode
Online UPS, DG optimizer
Output Ports (or PV spec)
2 x 120V, 2 x 240V
Battery
Technology
Super capacitor, LFP
Capacity
5kWh - 15kWh expandable
Voltage
51.2V nominal (47V – 55V)
Charging Cycles
Up to 20,000 cycles
Mechanical
Net Weight:
90kg / 198 lb
Dimensions (WxDxH)
60x60x68cm / 23x23x26in

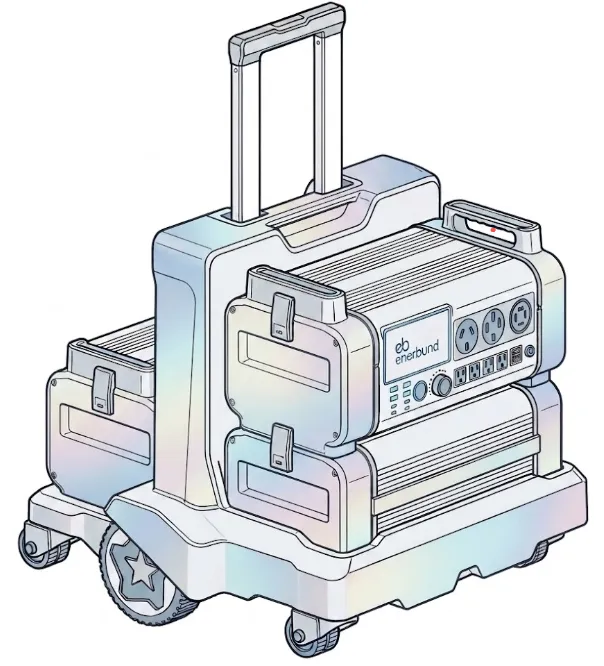

Convert to Portable and Go Off-Grid Wherever You Need Power

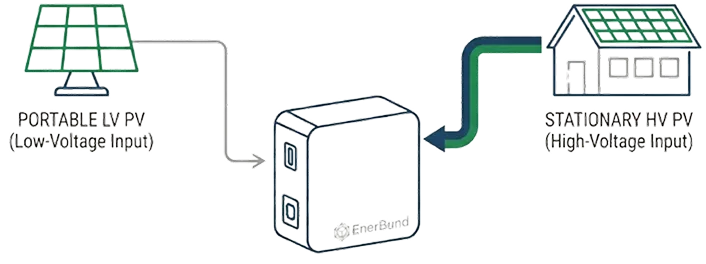

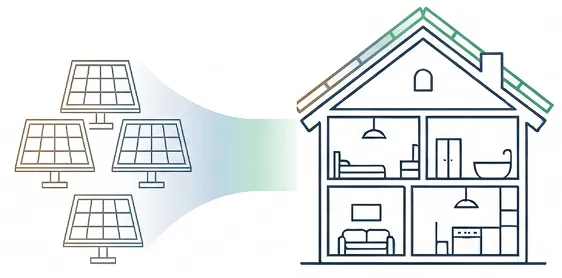

The portable modules provide clean 120/240V power anywhere, perfect for camping or outdoor work. You can recharge using low-voltage portable solar panels for unlimited off-grid operation.
The portable module enables EV-powered supply of essential loads during emergencies
Use the portable pack to give your EV enough charge to reach the nearest charger. It provides a safe, convenient solution for unexpected low-battery situations.

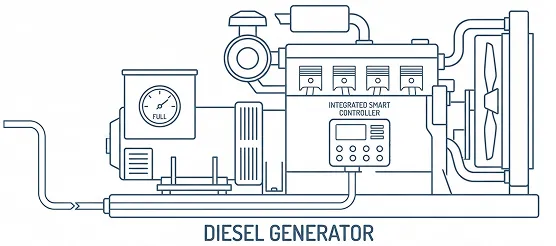

At night, the battery modules power your loads while the intelligent DG controller automatically starts the generator only when needed. Smart load management ensures critical loads stay powered at all times.
Integrated Intelligent Energy Management Module

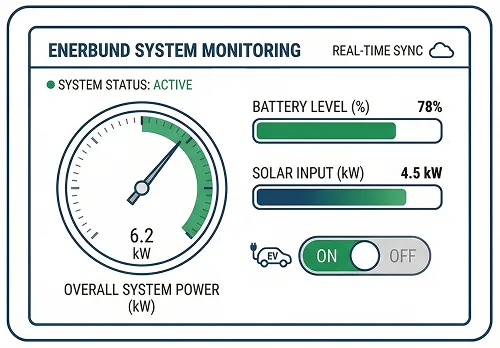

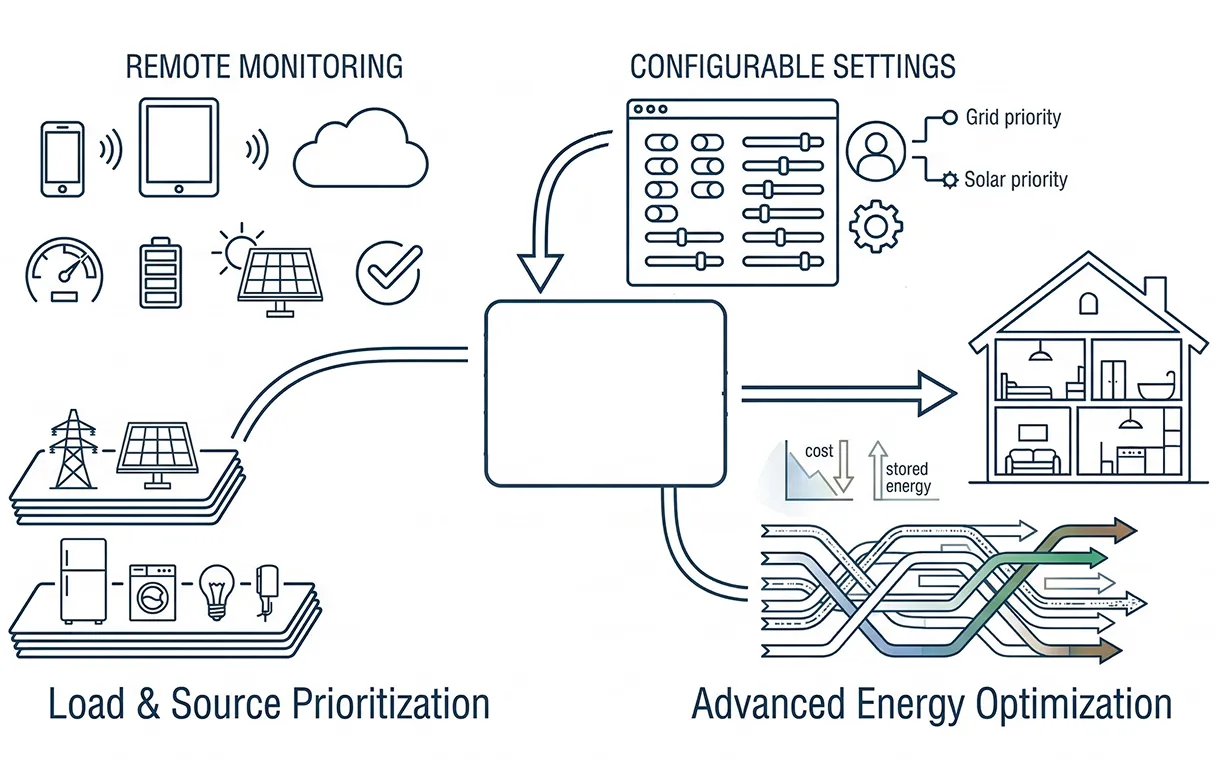

Monitor performance, battery status, solar production, and system health from anywhere in real time. The cloud platform gives you full visibility and control through your phone or browser.
Users can customize how the system behaves—such as when to charge, discharge, or prioritize solar vs. grid. The interface makes it easy to match the system operation to your lifestyle and energy goals.

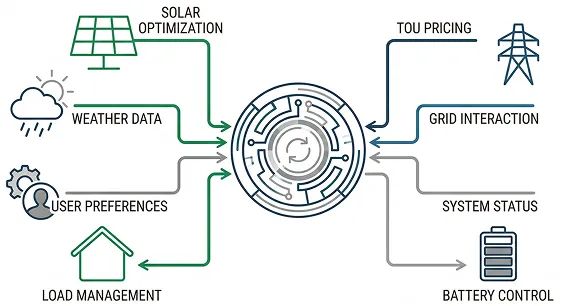

The system intelligently prioritizes power sources and loads to maximize efficiency and savings. Users can manually choose priorities or let the AI optimize everything automatically.
Machine-learning algorithms analyze your usage patterns, solar production, and pricing to minimize costs and maximize stored energy. The system continuously optimizes itself for the best performance.
The EMS starts and stops the generator based on real-time energy demand, battery status, and user settings. This reduces fuel consumption and noise while extending generator life.
The EMS automatically adjusts EV charging based on electricity prices, solar availability, or user-defined schedules. This ensures the lowest-cost, cleanest, and most efficient charging every day.
The EMS predicts household energy usage, solar generation, and EV charging needs using real-time and historical data. It automatically adjusts charging, discharging, and load management in advance to ensure maximum savings, reliability, and battery lifespan.
The EMS automatically limits power drawn from the grid during peak periods by supplementing with battery and solar energy. This reduces demand charges, prevents breaker overload, and keeps your home within safe electrical limits.
